2 to 32 positions CH 32 rotary switch for printed circuit

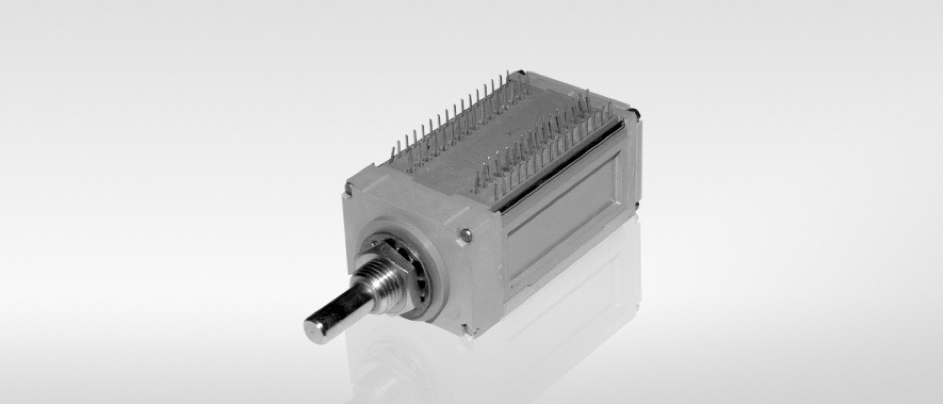

Rotary switch CH 32 for printed circuit

The CH 32 is a 2 to 32 positions rotary switch, with a maximum number of poles of 16 by wafer. The index angle between each position is 9°, 11°15', 12°51', 15°, 18°, 22°30', 5°42', 30°, 36°, 45°, 60°, 90° or 120°. This rotary switch can be commanded with or withour key. The command shaft has a diameter of Ø6 mm. The type of connection on this rotary switch are:

• printed circuit

The contacts on this rotary switch CH 32 can be gold and silver, and the rotary switch in Marine quality, with a sealing IP65. The rotary switch CH 32 can be modified to receive a system:

Details of CH 32 rotary switch

Main features of CH 32 rotary switch

• Number of positions: 2, 3, 4, 5, 6, 7, 8, 10, 12, 16, 20, 24, 26, 28, 32
• Index angle: 9°, 11°15', 12°51', 15°, 18°, 22°30', 5°42', 30°, 36°, 45°, 60°, 90° or 120°
• Maximum number of poles by wafer: 16
• Shaft diameter: Ø6 mm
• Type of contacts: gold and silver
• Dimension of switch body: 60 x 25,5 x 29 mm

Options available on CH 32 rotary switch

• Command by key: with or without
• Pull to turn: no
• Push to turn: no
• Return to center: no
• Connection by wire: no
• Connection by connector: no
• Connection on printed circuit: yes
• Marine quality: yes
• Sealing: IP65

Electric characteristics of CH 32 rotary switch

• Maximum voltage: 150 V
• Maximum current with cut: 0,2 A
• Maximum current without cut : 0,5 A
• Maximum switch rating: 15 W
